Autonomous vehicles place extraordinary demands on their sensing stack. Cameras, LiDARs, radars, and inertial/GNSS units do more than capture the environment—they define the limits of what the vehicle can possibly know. A planner cannot avoid a hazard it never perceived, and a controller cannot compensate for latency or drift it is never told about. Sensor validation therefore plays a foundational role in safety assurance: it characterizes what the sensors can and cannot see, how those signals are transformed into machine-interpretable entities, and how residual imperfections propagate into system-level risk within the intended operational design domain (ODD).

In practice, validation bridges three layers that must remain connected in the evidence trail. The first is the hardware layer, which concerns intrinsic performance such as resolution, range, sensitivity, and dynamic range; extrinsic geometry that pins each sensor into the vehicle frame; and temporal behavior including latency, jitter, timestamp accuracy, and clock drift. The second is the signal-to-perception layer, where raw measurements are filtered, synchronized, fused, and converted into maps, detections, tracks, and semantic labels. The third is the operational layer, which tests whether the sensing system—used by the autonomy stack as deployed—behaves acceptably across the ODD, including rare lighting, weather, and traffic geometries. A credible program links evidence across these layers to a structured safety case aligned with functional safety (ISO 26262), SOTIF (ISO 21448), and system-level assurance frameworks, making explicit claims about adequacy and known limitations.

The overarching aim is not merely to pass tests but to bound uncertainty and preserve traceability. For each modality, the team seeks a quantified understanding of performance envelopes: how detection probability and error distributions shift with distance, angle, reflectivity, ego speed, occlusion, precipitation, sun angle, and electromagnetic or thermal stress. These envelopes are only useful when translated into perception key performance indicators and, ultimately, into safety metrics such as minimum distance to collision, time-to-collision thresholds, mission success rates, and comfort indices. Equally important is traceability from a system-level outcome back to sensing conditions and processing choices—so a late failure can be diagnosed as calibration drift, timestamp skew, brittle ground filtering, overconfident tracking, or a planner assumption about obstacle contours. Validation artifacts—calibration reports, timing analyses, parameter-sweep results, and dataset manifests—must therefore be organized so that claims in the safety case are backed by reproducible evidence.

The bench begins with geometry and time. Intrinsic calibration (for cameras: focal length, principal point, distortion; for LiDAR: channel angles and firing timing) ensures raw measurements are geometrically meaningful, while extrinsic calibration fixes rigid-body transforms among sensors and relative to the vehicle frame. Temporal validation establishes timestamp accuracy, cross-sensor alignment, and end-to-end latency budgets. Small timing mismatches that seem benign in isolation can yield multi-meter spatial discrepancies during fusion, particularly when tracking fast-moving actors or when the ego vehicle is turning. Modern stacks depend on this foundation: a LiDAR–camera fusion pipeline that projects point clouds into image coordinates requires both precise extrinsics and sub-frame-level temporal alignment to avoid ghosted edges and misaligned semantic labels. Calibration is not a one-off event; temperature cycles, vibration, and maintenance can shift extrinsics, and firmware updates can alter timing. Treat calibration and timing as monitorable health signals with periodic self-checks—board patterns for cameras, loop-closure or NDT metrics for LiDAR localization, and GNSS/IMU consistency tests—to catch drift before it erodes safety margins.

Validation must extend beyond the sensor to the pre-processing and fusion pipeline. Choices about ground removal, motion compensation, glare handling, region-of-interest cropping, or track-confirmation logic can change effective perception range and false-negative rates more than a nominal hardware swap. Controlled parameter sensitivity studies are therefore essential. Vary a single pre-processing parameter over a realistic range and measure how first-detection distance, false-alarm rate, and track stability evolve. These studies are inexpensive in simulation and surgical on a test track, and they surface brittleness early, before it appears as uncomfortable braking or missed obstacles in traffic. Notably, changes to LiDAR ground-filter thresholds can shorten the maximum distance at which a stopped vehicle is detected by tens of meters, shaving seconds off reaction time and elevating risk—an effect that should be measured and tied explicitly to safety margins.

Perception KPIs must be defined with downstream decisions in mind. Aggregate AUCs are less informative than scoped statements such as “stopped-vehicle detection range at ninety-percent recall under dry daylight urban conditions.” Localization health is better expressed as a time-series metric correlated with map density and scene content than as a single RMS figure. The aim is to generate metrics a planner designer can reason about when setting buffers and behaviors. These perception-level KPIs should be linked to system-level safety measures—minimum distance to collision, collision occurrence, braking aggressiveness, steering smoothness—so that changes in sensing or pre-processing can be convincingly shown to increase or decrease risk.

One of the interesting consequences of sensors calibration is the requirement to build calibration capability in the maintenance capabilities for the products.

Miles driven is a weak proxy for sensing assurance. What matters is which situations were exercised and how well they cover the risk landscape. Scenario-based validation replaces ad-hoc mileage with structured, parameterized scenes that target sensing stressors: low-contrast pedestrians, vehicles partially occluded at offset angles, near-horizon sun glare, complex specular backgrounds, or rain-induced attenuation. Scenario description languages allow these scenes to be specified as distributions over positions, velocities, behaviors, and environmental conditions, yielding reproducible and tunable tests rather than anecdotal encounters. Formal methods augment this process through falsification—automated searches that home in on configurations most likely to violate monitorable safety properties, such as maintaining a minimum separation or confirming lane clearance for a fixed dwell time. This formalism pays two dividends: it turns vague requirements into properties that can be checked in simulation and on track, and it exposes precise boundary conditions where sensing becomes fragile, which are exactly the limitations a safety case must cite and operations must mitigate with ODD constraints.

High-fidelity software-in-the-loop closes the gap between abstract scenarios and the deployed stack. Virtual cameras, LiDARs, and radars can drive the real perception software through middleware bridges, enabling controlled reproduction of rare cases, precise occlusions, and safe evaluation of updates. But virtual sensors are models, not mirrors; rendering pipelines may fail to capture radar multipath, rolling-shutter distortions, wet-road reflectance, or the exact beam divergence of a specific LiDAR. The simulator should therefore be treated as an instrument that requires its own validation. A practical approach is to maintain paired scenarios: for a subset of tests, collect real-world runs with raw logs and environmental measurements, then reconstruct them in simulation as faithfully as possible. Compare detection timelines, track stability, and minimum-distance outcomes, and quantify the divergence with time-series metrics such as dynamic time warping on distance profiles, discrepancies in first-detection timestamps, and divergence in track IDs. The goal is not to erase the sim-to-real gap—an unrealistic aim—but to bound it and understand where simulation is conservative versus optimistic.

Because budgets are finite, an efficient program adopts a two-layer workflow. The first layer uses faster-than-real-time, lower-fidelity components to explore large scenario spaces, prune uninformative regions, and rank conditions by estimated safety impact. The second layer replays the most informative cases in a photorealistic environment that streams virtual sensor data into the actual autonomy stack and closes the control loop back to the simulator. Both layers log identical KPIs and time-aligned traces so results are comparable and transferable to track trials. This combination of breadth and fidelity uncovers corner cases quickly, quantifies their safety implications, and yields ready-to-execute test-track procedures for final confirmation.

Modern validation must encompass accidental faults and malicious interference. Sensors can be disrupted by spoofing, saturation, or crafted patterns; radars can suffer interference; GPS can be jammed or spoofed; IMUs drift. Treat these as structured negative test suites, not afterthoughts. Vary spoofing density, duration, and geometry; inject glare or saturation within safe experimental protocols; simulate or hardware-in-the-loop radar interference; and record how perception KPIs and system-level safety metrics respond. The objective is twofold: quantify degradation—how much earlier does detection fail, how often do tracks drop—and evaluate defenses such as cross-modality consistency checks, health-monitor voting, and fallbacks that reduce speed and increase headway when sensing confidence falls below thresholds. This work connects directly to SOTIF by exposing performance-limited hazards amplified by adversarial conditions, and to functional safety by demonstrating safe states under faults.

Validation produces data, but assurance requires an argument. Findings should be organized so that each top-level claim—such as adequacy of the sensing stack for the defined ODD—is supported by clearly scoped subclaims and evidence: calibrated geometry and timing within monitored bounds; modality-specific detection and tracking KPIs across representative environmental strata; quantified sim-to-real differences for critical scenes; scenario-coverage metrics that show where confidence is high and where operational mitigations apply; and results from robustness and security tests. Where limitations remain—as they always do—they should be stated plainly and tied to mitigations, whether that means reduced operational speed in heavy rain beyond a specified attenuation level, restricted ODD where snow eliminates lane semantics, or explicit maintenance intervals for recalibration.

A final pragmatic recommendation is to treat validation data as a first-class product. Raw logs, configuration snapshots, and processing parameters should be versioned, queryable, and replayable. Reproducibility transforms validation from a hurdle into an engineering asset: when a perception regression appears after a minor software update, the same scenarios can be replayed to pinpoint the change; when a new sensor model is proposed, detection envelopes and safety margins can be compared quickly and credibly. In this way, the validation of perception sensors becomes a disciplined, scenario-driven program that ties physical sensing performance to perception behavior and ultimately to system-level safety outcomes, while continuously informing design choices that make the next round of validation faster and more effective.

Governance and Safety Challenges:

EMI:

What are the implications for automakers ? In modern vehicles, electronics are no longer confined to infotainment or engine control—sensors, communication modules, and controllers are now central to vehicle safety and performance. These systems emit and receive electromagnetic energy, which can result in electromagnetic interference (EMI) if not properly managed. EMI can compromise safety-critical applications like radar- based adaptive cruise control or camera-based lane keeping. Sensor technologies introduce unique EMI challenges. Radar and lidar sensors, which are critical for driver assistance and autonomous systems, must not only avoid interference with each other but must also operate within spectrum allocations defined by the FCC and global bodies like the ITU. Similarly, cameras and ultrasonic sensors are susceptible to noise from nearby power electronics, especially in electric vehicles. EMI from poorly shielded cables or high-frequency switching components can cause data corruption, missed detections, or degraded signal integrity—raising both functional safety and regulatory concerns.

From a communications standpoint, FCC-compliant system design must also consider interoperability and coexistence. In a vehicle packed with Bluetooth, Wi-Fi, GPS, DSRC or C-V2X, and cellular modules, maintaining RF harmony requires careful frequency planning, shielding, and filtering. The FCC’s evolving rules for the 5.9 GHz band—reallocating portions from DSRC to C-V2X—illustrate how regulatory frameworks directly impact product architecture. OEMs must track these developments and validate that their communication modules not only operate within approved frequency bands but also do not emit spurious signals that could violate FCC emission ceilings. To meet FCC standards while ensuring high system reliability, automotive developers must embed EMI considerations early in the design cycle. Pre-compliance testing, EMI-aware PCB layout, and component-level certification all contribute to a smoother path to regulatory approval. Moreover, aligning FCC requirements with international automotive EMC standards—like CISPR 25 and UNECE R10—helps ensure global market readiness. As vehicles grow increasingly software-defined, connected, and autonomous, managing EMI through smart engineering and regulatory foresight will be a critical enabler of innovation, safety, and compliance.

As discussed, FCC regulations are primarily focused on electromagnetic interference. However, if RF energy has the potential to cause health issues, other regulators are involved. Health and safety regulation for FCC Part 18 devices—such as microwave ovens and medical RF equipment—is primarily handled by agencies. The Food and Drug Administration (FDA) oversees radiation-emitting electronic products to ensure they meet safety standards for human exposure, particularly for consumer appliances and medical devices. The Occupational Safety and Health Administration (OSHA) establishes workplace safety limits for RF exposure to protect employees who operate or work near such equipment. Meanwhile, the National Institute for Occupational Safety and Health (NIOSH) conducts research and provides guidance on safe RF exposure levels in occupational settings. While the FCC regulates RF emissions from Part 18 devices to prevent interference with licensed communication systems, it relies on these other agencies to ensure that the devices do not pose health risks to users or workers.

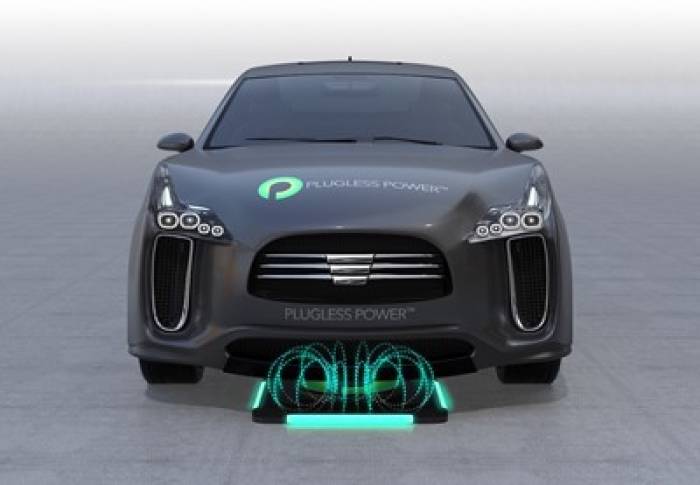

In the case of vehicle makers, part 18 health issues manifest themselves in use-models such as wireless power delivery where SAR levels may impact safety directly.

Finally, while the examples used above are from a US context, similar structures exist in all other geographies.

In the last decade, the airborne sector has layered autonomy and advanced sensing on top of this foundation. Modern UAVs and advanced air mobility platforms integrate sensor fusion processors, vision systems, and AI accelerators for detect-and-avoid and autonomous navigation. Commercial transports incorporate enhanced vision systems, predictive maintenance analytics, and increasingly software-defined capabilities. However, unlike automotive’s rapid consumer-driven scaling, airborne electronics remain constrained by certification timelines, long product lifecycles (20–30+ years), and extreme environmental requirements (temperature, vibration, radiation).

Challenges of Supply Chain Specific to Autonomous Systems

Autonomous systems add several unique layers of complexity to both hardware integration and supply chain management:

Multi-Vendor Dependency A single autonomous platform may use components from dozens of vendors — from AI accelerators to GNSS modules. Managing version control, firmware updates, and hardware compatibility across this ecosystem requires multi-tier coordination and continuous configuration tracking [55].

Safety-Critical Certification Hardware must meet safety and regulatory certifications, such as:

• ISO 26262 (automotive functional safety)
• DO-254 (aerospace hardware design assurance)
• IEC 61508 (industrial functional safety)

Each certification adds cost, time, and documentation requirements.

Real-Time and Deterministic Performance Integration must guarantee low-latency, deterministic behaviour — meaning that sensors, processors, and actuators must communicate within microsecond precision. This influences hardware selection and network design [56].

Rapid Technology Obsolescence AI and embedded computing evolve faster than mechanical systems. Components become obsolete before the platform’s lifecycle ends, forcing supply chains to manage technology refresh cycles and long-term component availability planning [57].

Possible Solutions and Best Practices

The most important challenges and possible solutions are summarized in the following table:

Typical Supply Chain Management (SCM) Approaches Strategic Partnerships and Vertical Integration

Many companies are moving toward vertical integration, controlling multiple stages of the supply chain. For instance:

• Tesla manufactures its own battery packs and AI chips.
• DJI designs in-house flight controllers and optical sensors.

This approach increases supply security and reduces dependency on third parties, though it requires substantial capital investment.

Sustainability and Ethical SCM

Sustainability in supply chains focuses on reducing carbon footprint, ensuring ethical sourcing, and promoting recyclability [65]. Key practices:

• Lifecycle assessments (LCA) for environmental impact.
• Closed-loop recycling for electronic waste.
• Supplier sustainability audits.
• ISO 14001 certification for environmental management systems.

Effective hardware integration and supply chain management are tightly interwoven. Integration depends on having high-quality, compatible components, while supply chains rely on robust feedback from integration and testing to forecast needs, reduce waste, and maintain reliability. Modern SCM frameworks, particularly Lean, Agile, and Digital models, offer strategies to make the autonomy industry more resilient, sustainable, and responsive.

As discussed in chapter 2, all of these systems live under a governance structure where validation and verification technology links the technical world to the governance structure. Critical in enabling these processes is the domain of Electronic Design Automation (EDA). EDA refers to the software tools and workflows used to design, verify, and prepare semiconductor devices and electronic systems for manufacturing. At the chip level, the flow typically begins with system architecture and specification, followed by separate but converging analog and digital design streams. In digital design, engineers describe functionality using hardware description languages (HDLs) such as Verilog or VHDL, simulate for functional correctness, synthesize to logic gates, and perform place-and-route to create a physical layout. This is followed by static timing analysis, power analysis, signal integrity checks, and increasingly, formal verification and functional safety validation (e.g., ISO 26262 contexts). In analog/mixed-signal design, the flow is more device- and layout-centric: schematic capture, SPICE-level simulation (corner, Monte Carlo, noise, mismatch), layout with careful parasitic extraction, and iterative verification (LVS/DRC). At advanced nodes, the boundary between analog and digital blurs in mixed-signal SoCs, requiring tight co-simulation and cross-domain verification.

Once the silicon design is complete, the flow extends to package design, which has become increasingly critical in advanced-node and heterogeneous integration contexts (e.g., chiplets, 2.5D/3D integration). Package EDA tools model signal integrity, power integrity, thermal behavior, and mechanical stress across substrates, interposers, and bumps. The package is no longer a passive carrier; it is an electrical extension of the die, affecting timing closure, power delivery, and high-speed interfaces (e.g., UCIe, HBM). Finally, at the PCB level, board design tools integrate schematic capture, component placement, routing, and multi-physics analysis (signal integrity, EMI/EMC, thermal). High-speed digital systems require co-design between chip I/O, package escape routing, and PCB stackup to maintain impedance control and timing margins. Modern EDA workflows increasingly emphasize cross-domain co-design—from transistor to board—because performance, reliability, and safety are emergent properties of the entire electronic system, not just the silicon alone.

The Electronic Design Automation (EDA) industry is highly concentrated, with dominant global vendors controlling the majority of advanced semiconductor design workflows. Synopsys, Cadence Design Systems, and Siemens EDA (formerly Mentor Graphics) collectively provide end-to-end toolchains spanning digital implementation, analog/mixed-signal design, verification, IP integration, packaging, PCB design, and multi-physics analysis. Synopsys is particularly strong in digital synthesis, verification, and IP; Cadence has deep capabilities in custom/analog design and system analysis; and Siemens EDA is well known for PCB design, verification, and manufacturing integration. Beyond the “big three,” companies such as Ansys play a critical role in sign-off physics (signal integrity, power integrity, thermal, electromagnetics), while emerging players focus on AI-assisted design automation and specialized domains like photonics or chiplet integration. The high technical complexity, deep foundry integration (e.g., with TSMC, Samsung, Intel), and massive R&D investment required at advanced nodes create significant barriers to entry, reinforcing the industry’s oligopolistic structure.

Physical testing of electronics spans wafer probe, packaged device qualification, board-level validation, and full system stress testing, and is supported by a concentrated set of global vendors. In semiconductor production test, automated test equipment (ATE) leaders such as Teradyne and Advantest dominate high-volume logic, memory, and SoC testing, enabling parametric characterization, functional verification, and speed binning at wafer and final test. For reliability and environmental stress—HTOL, temperature cycling, vibration, and humidity—chamber providers like ESPEC and Thermotron are widely used in automotive and aerospace qualification flows. Electrical measurement and compliance validation at the device and board level rely heavily on instrumentation from Keysight Technologies and Rohde & Schwarz, particularly for high-speed interfaces and RF systems. Inspection and failure analysis—critical for advanced packaging and heterogeneous integration—often leverage X-ray and acoustic microscopy systems from Nordson, as well as materials analysis platforms from Thermo Fisher Scientific. Together, these vendors underpin the physical validation layer that complements design verification, ensuring performance, reliability, and safety before deployment into mission-critical applications.
